The Snorkel 600AJN electric boom lift features a double articulated boom. A uniquely narrow design for use in tight spaces, this machine is only 7 ft. wide with zero tail swing.
I was tasked with designing the covers, counterweight and physical & graphical user interfaces. The new designs reflect Snorkel's brand identity, creating a consistent and safe experience that operators have come to expect from our products.

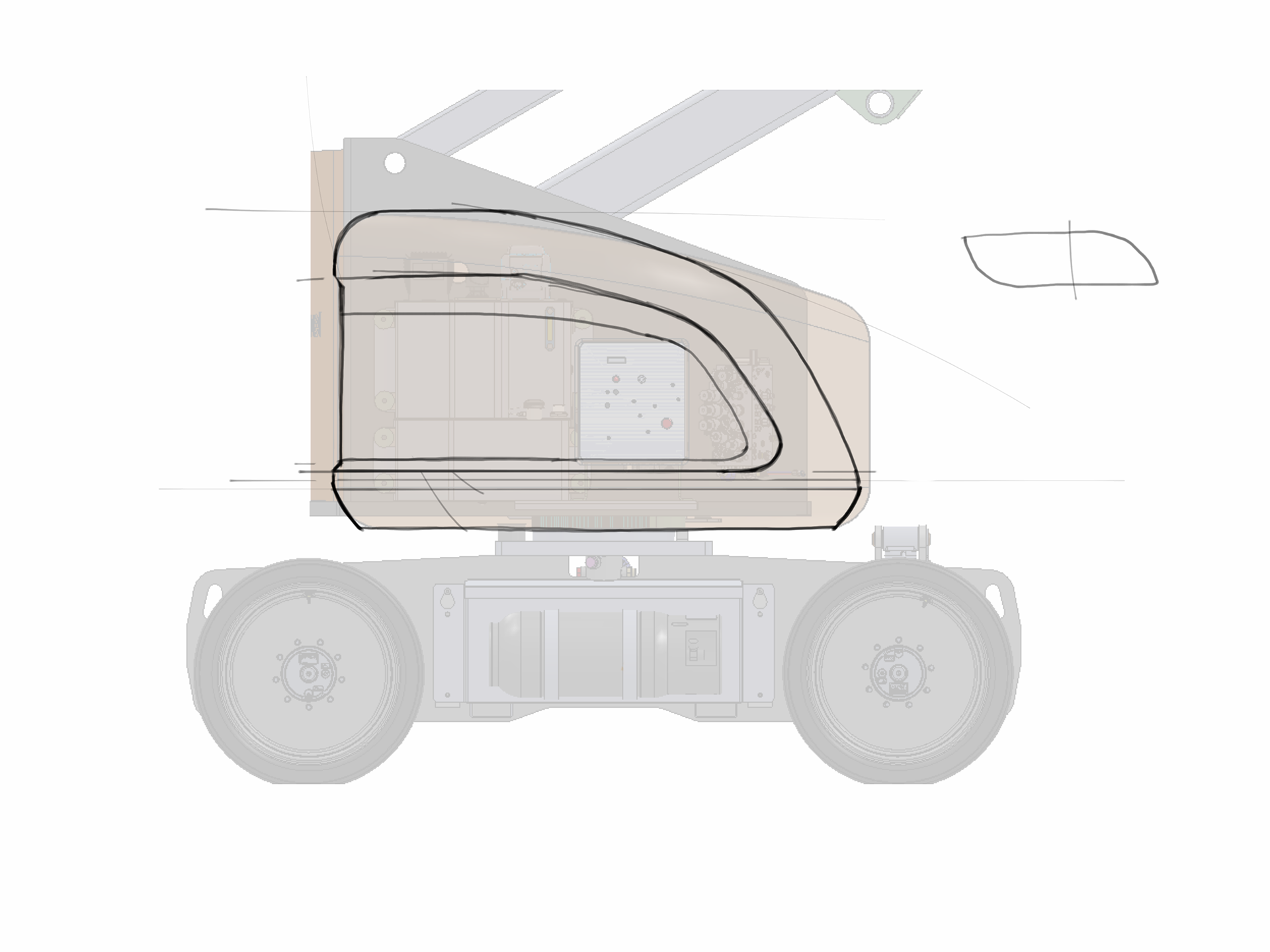

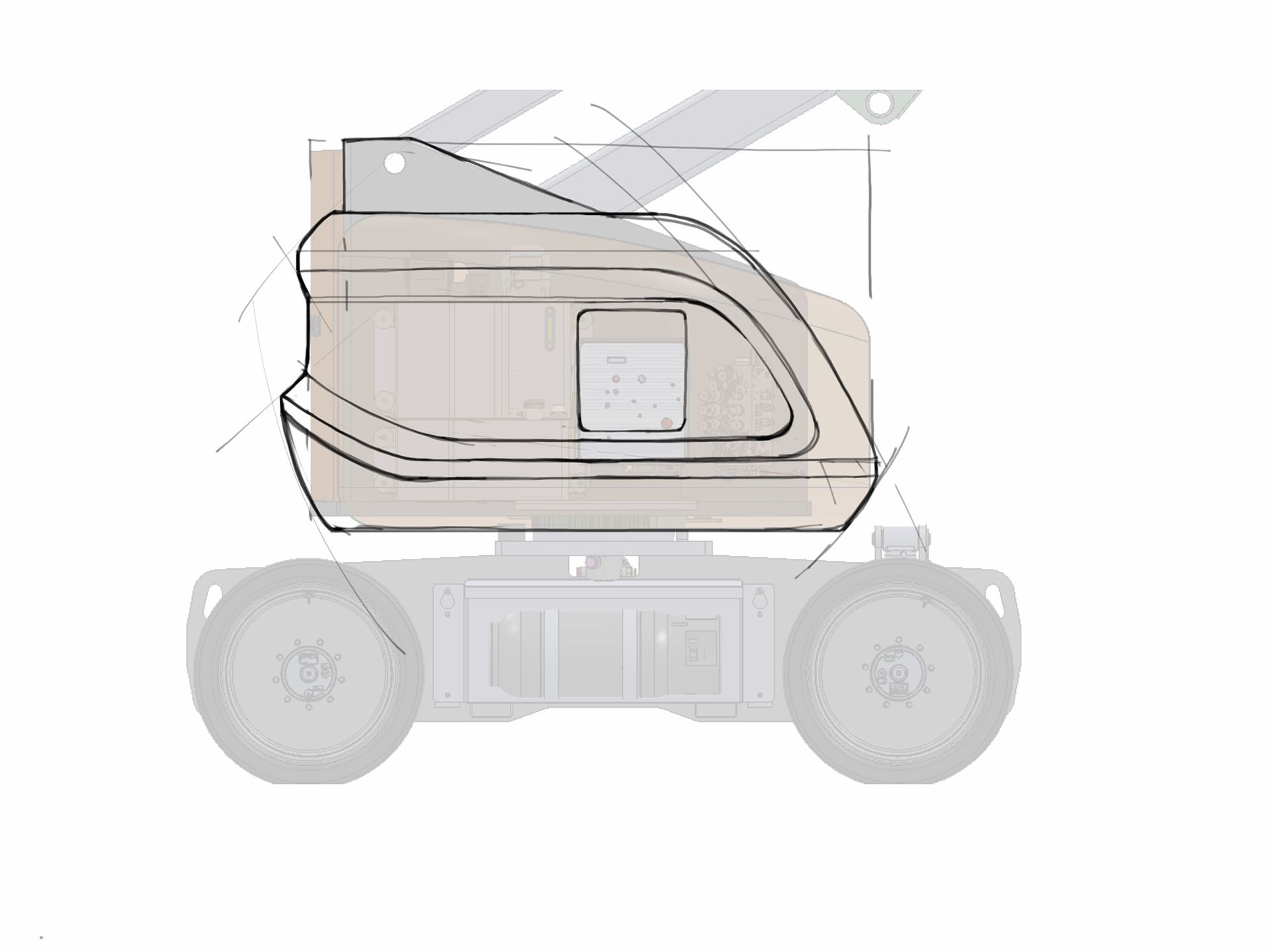

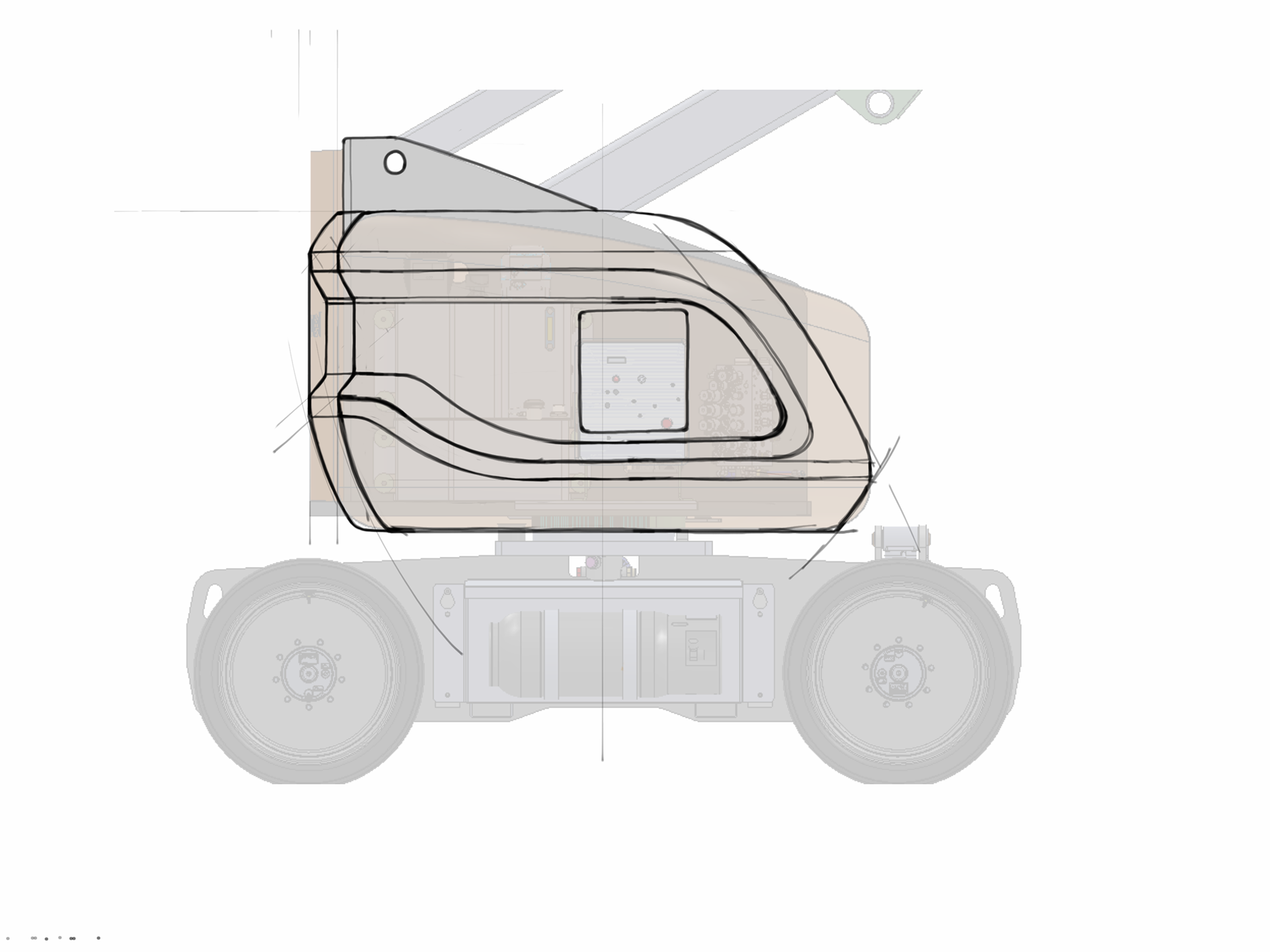

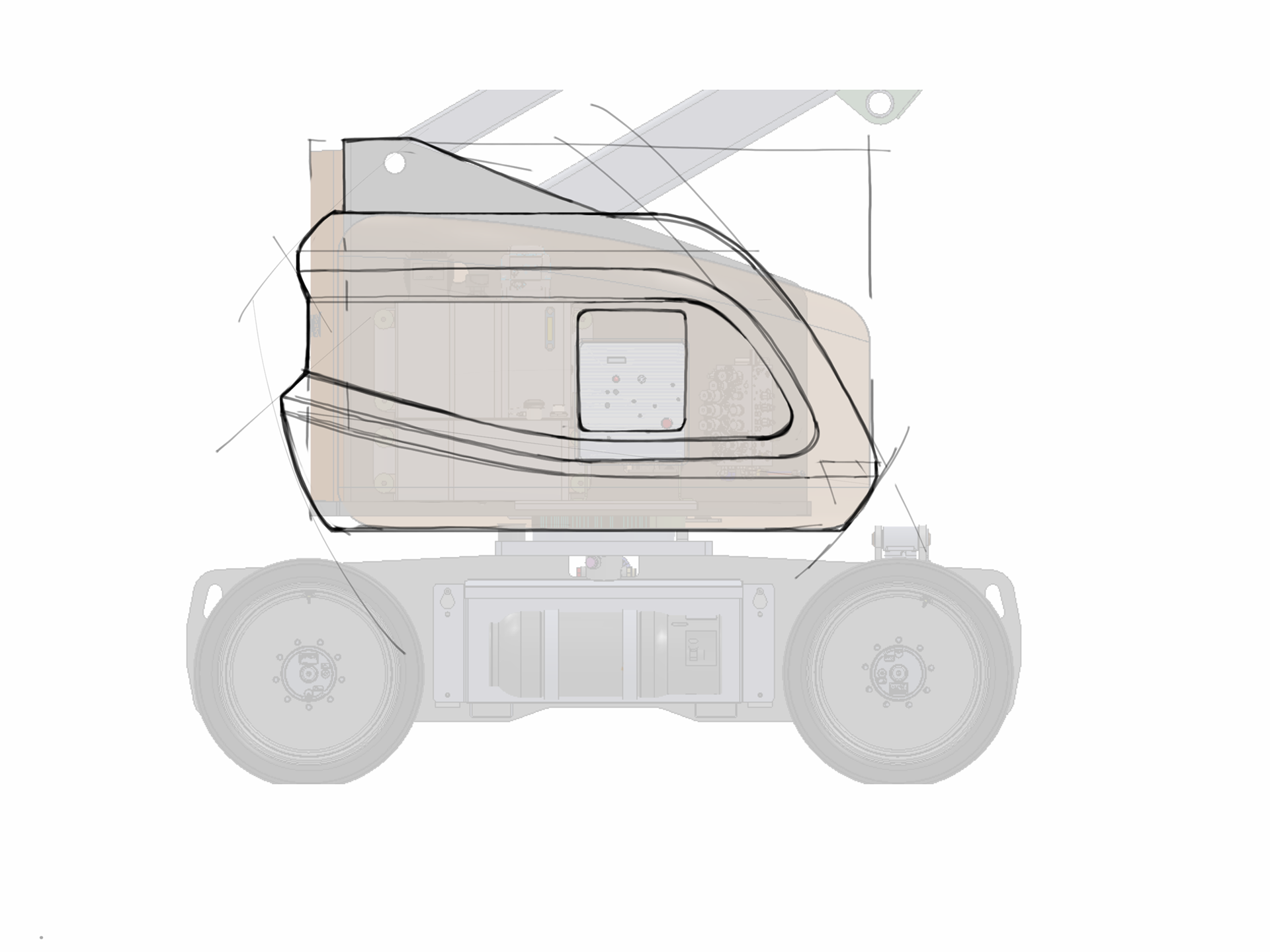

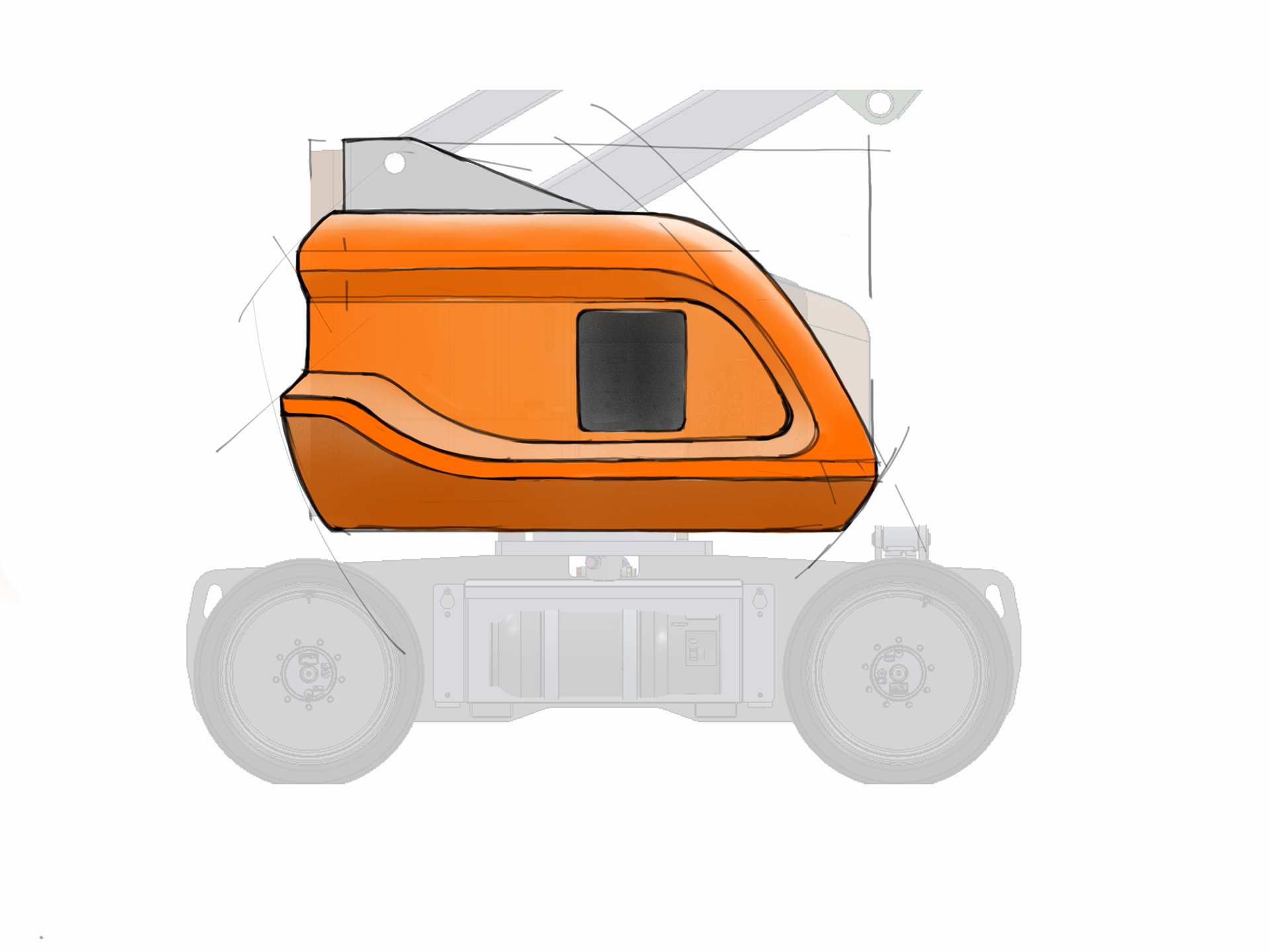

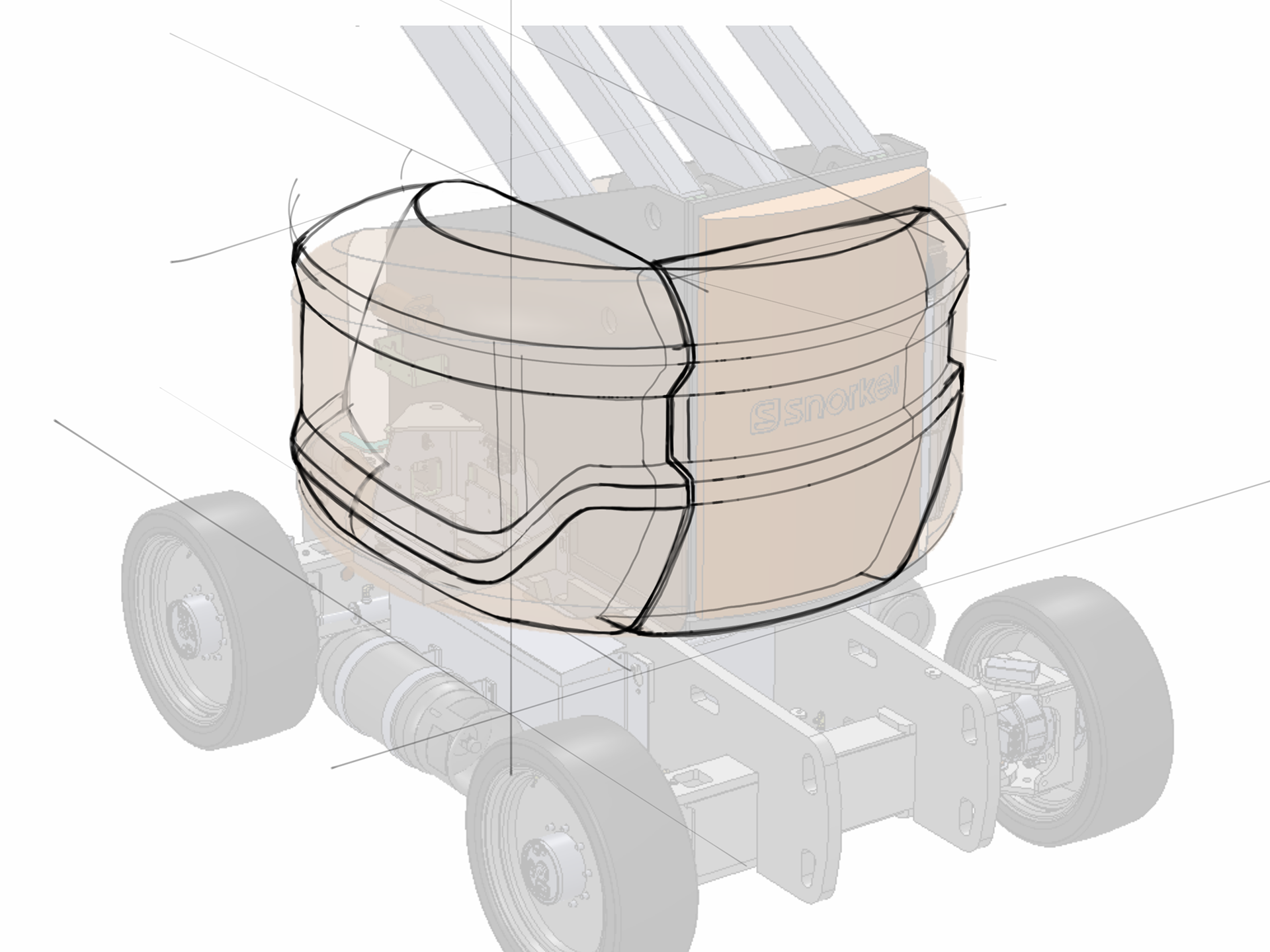

CONCEPT SKETCHES

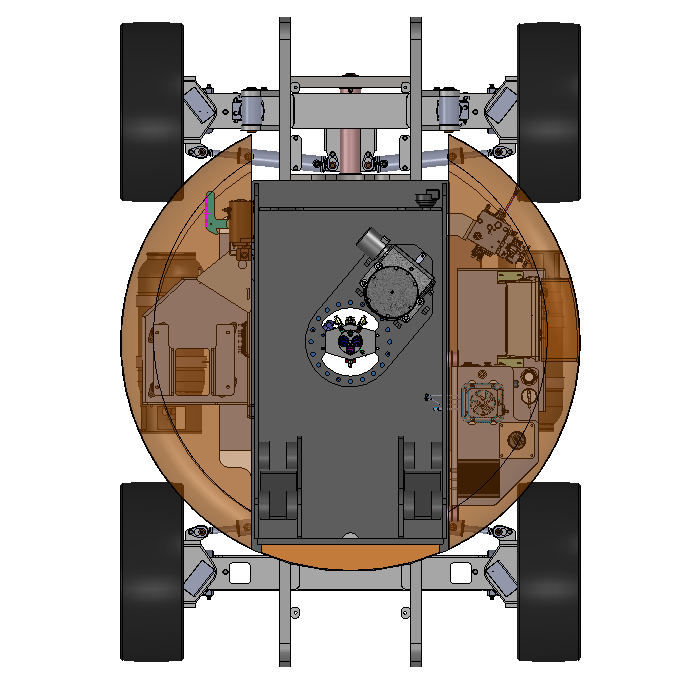

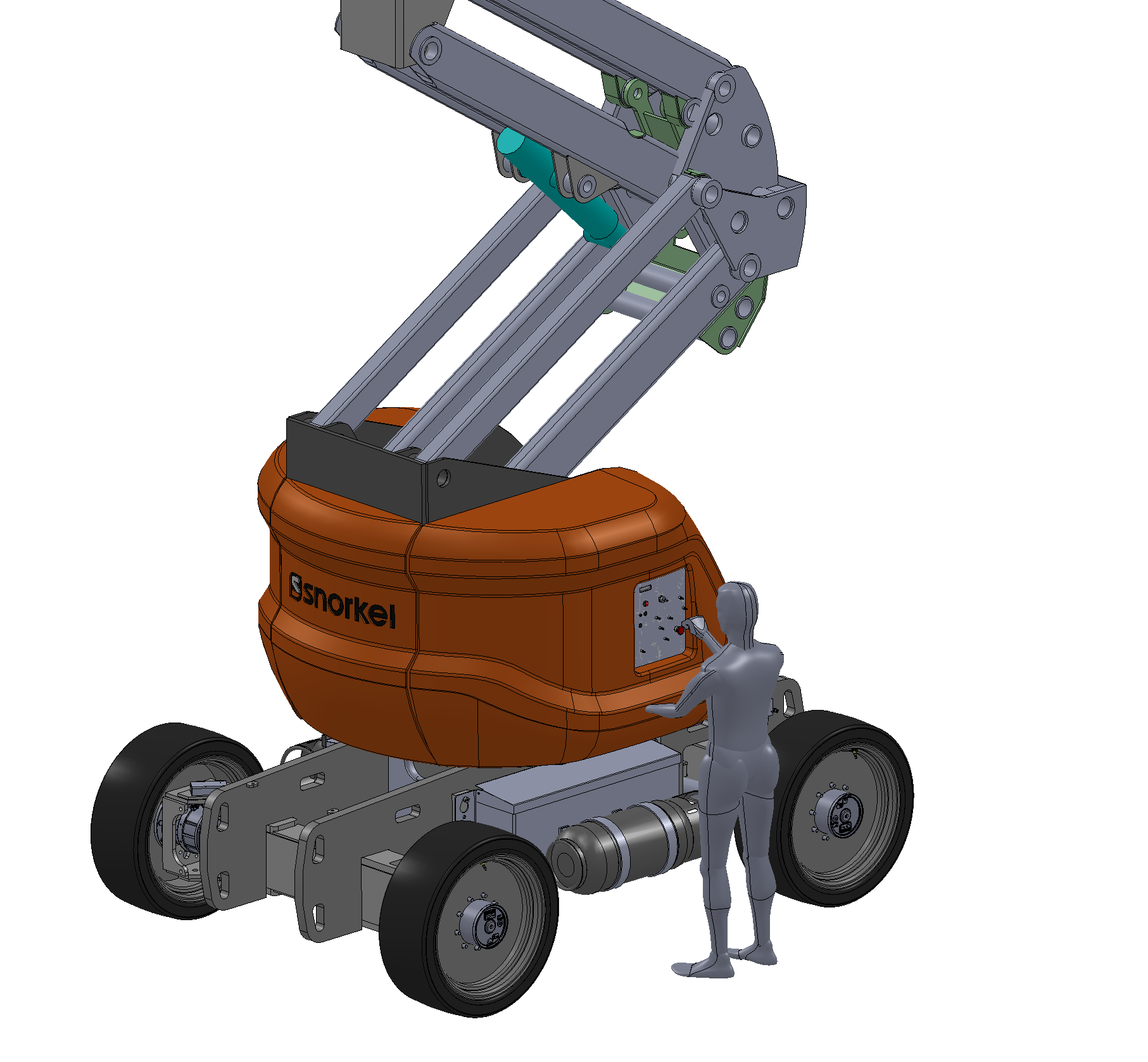

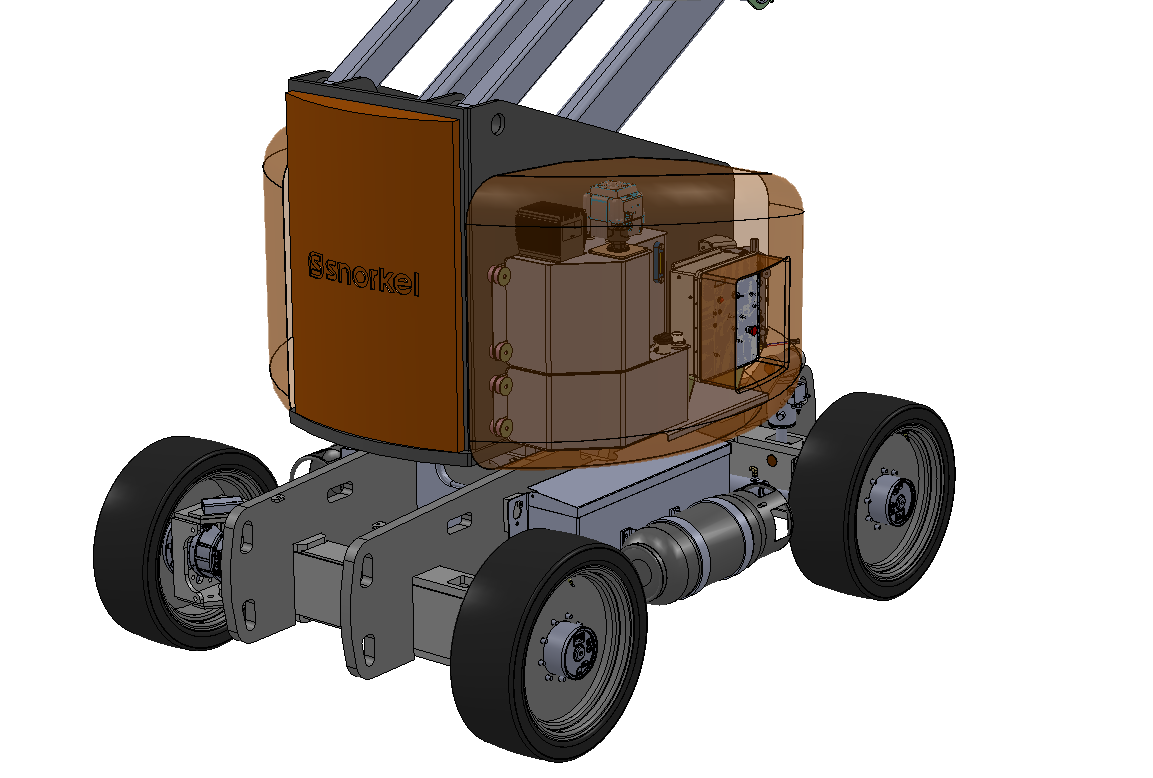

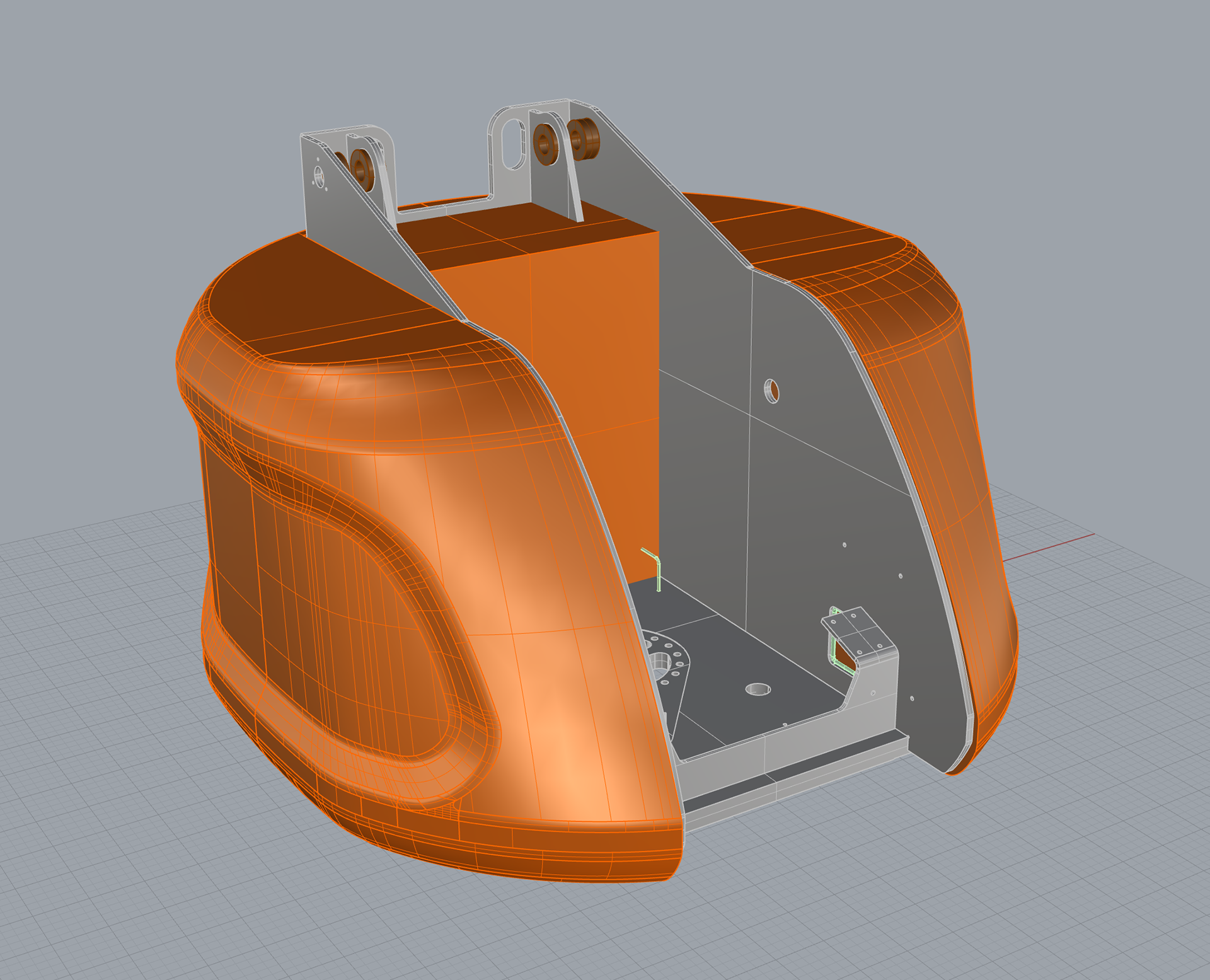

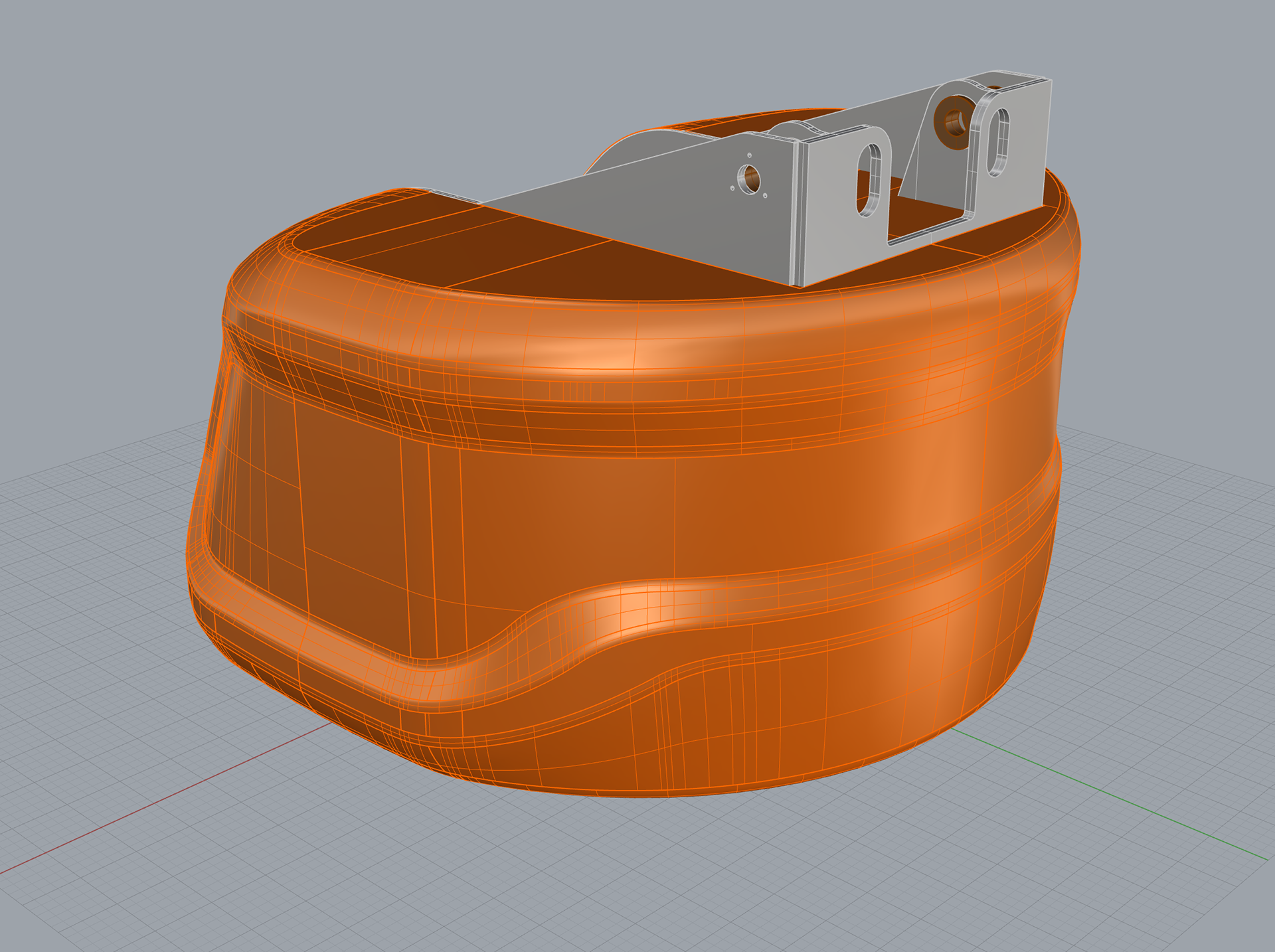

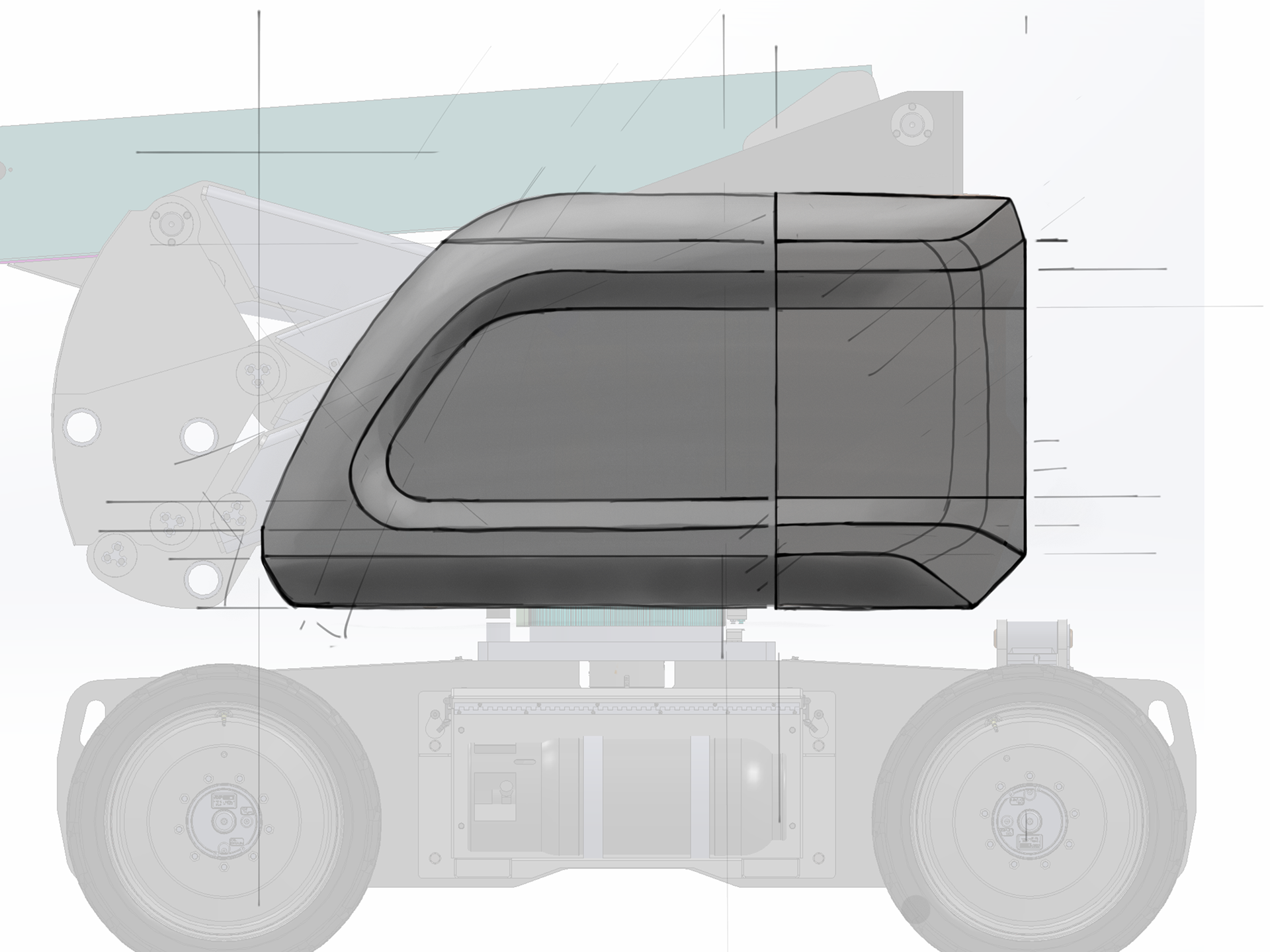

CAD SCULPTING

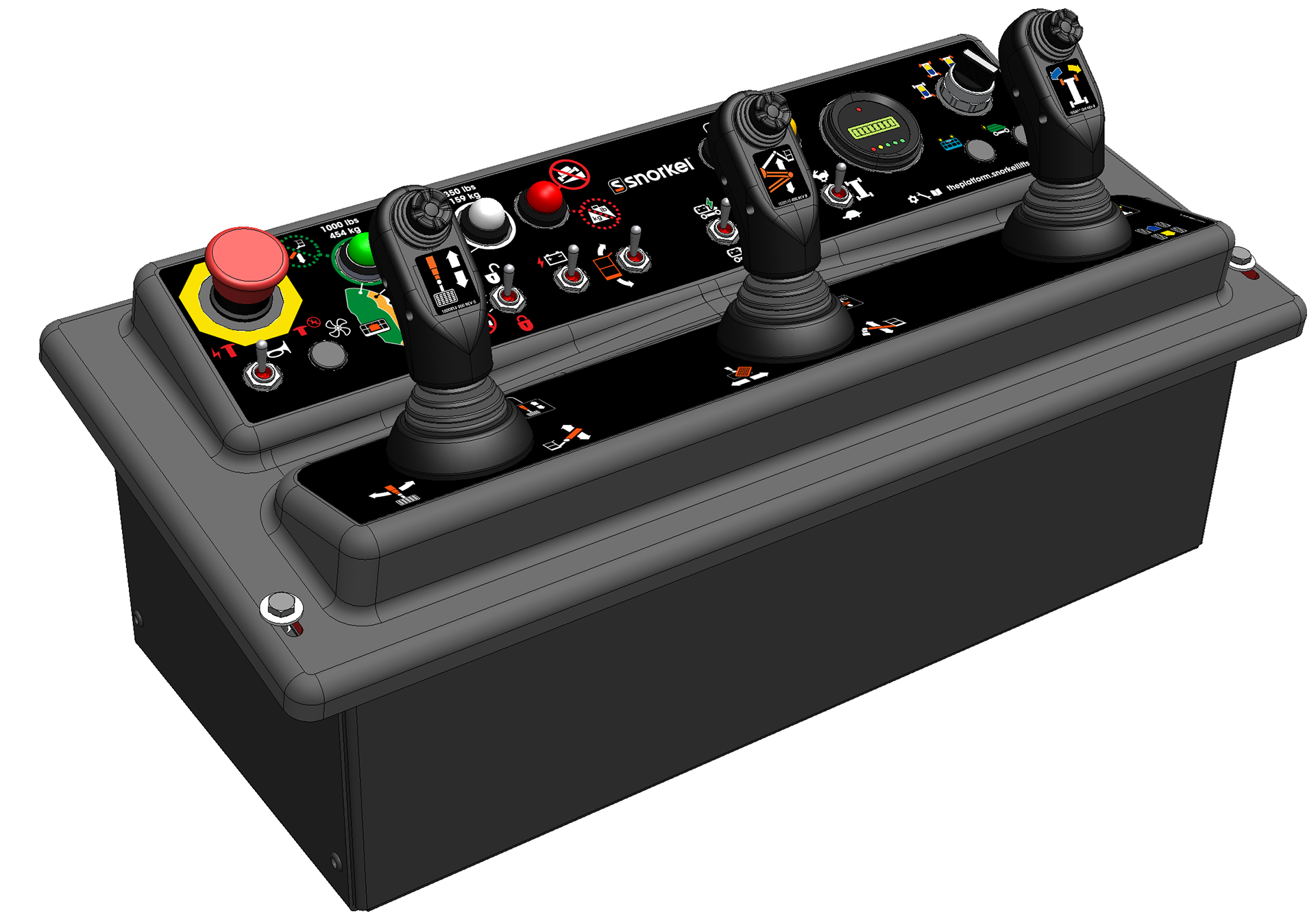

PHYSICAL USER INTERFACE

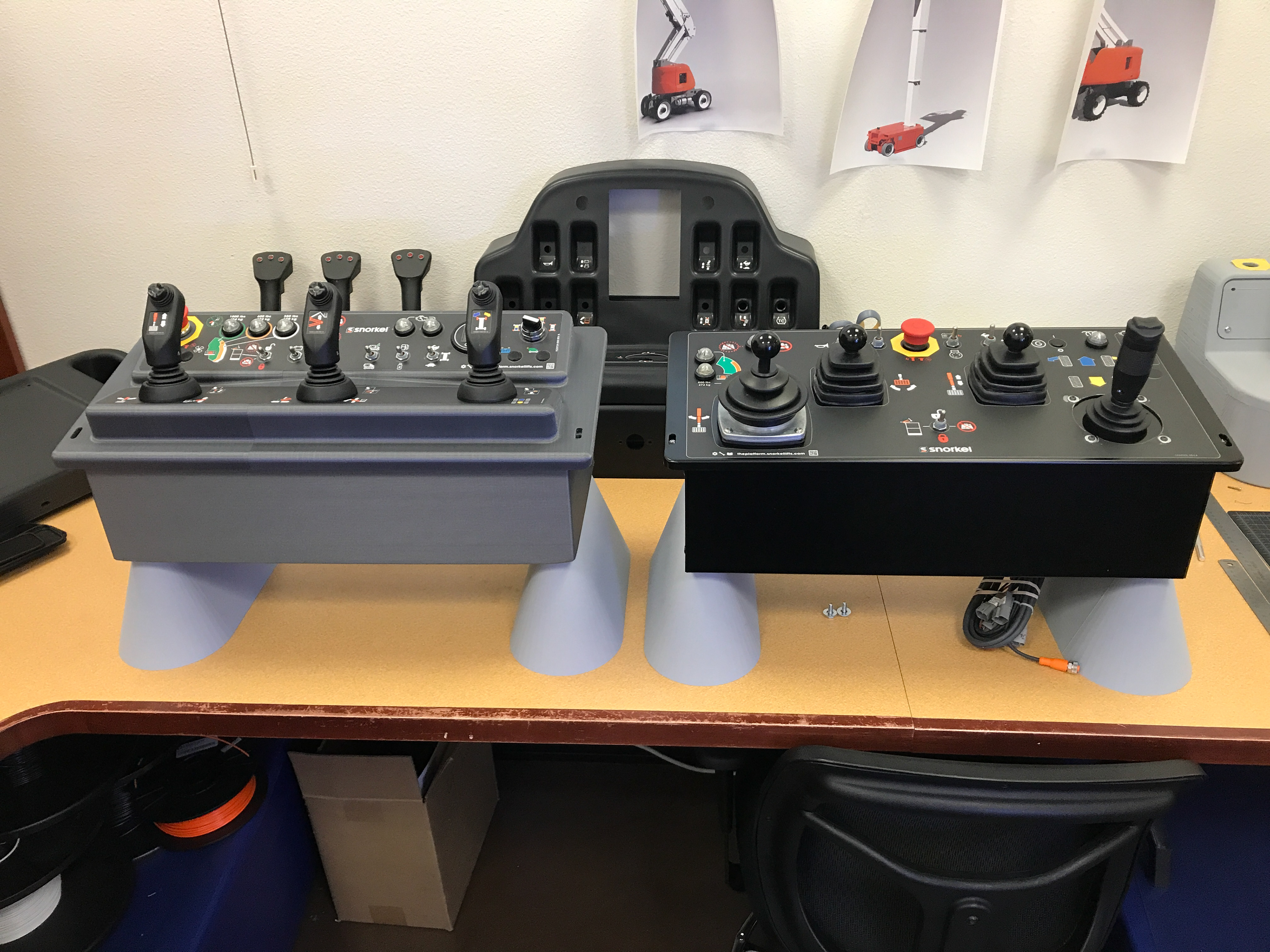

A new layout for machine controls in a vac-formed lid was compared against the existing sheet metal box to validate ergonomics and usability.

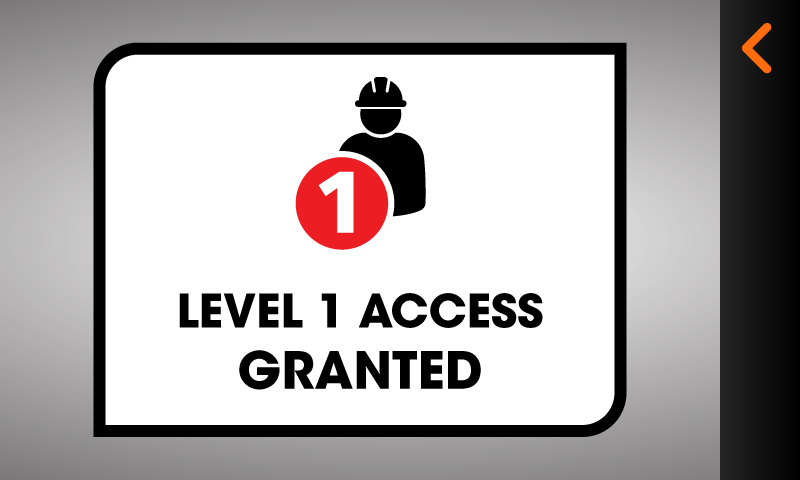

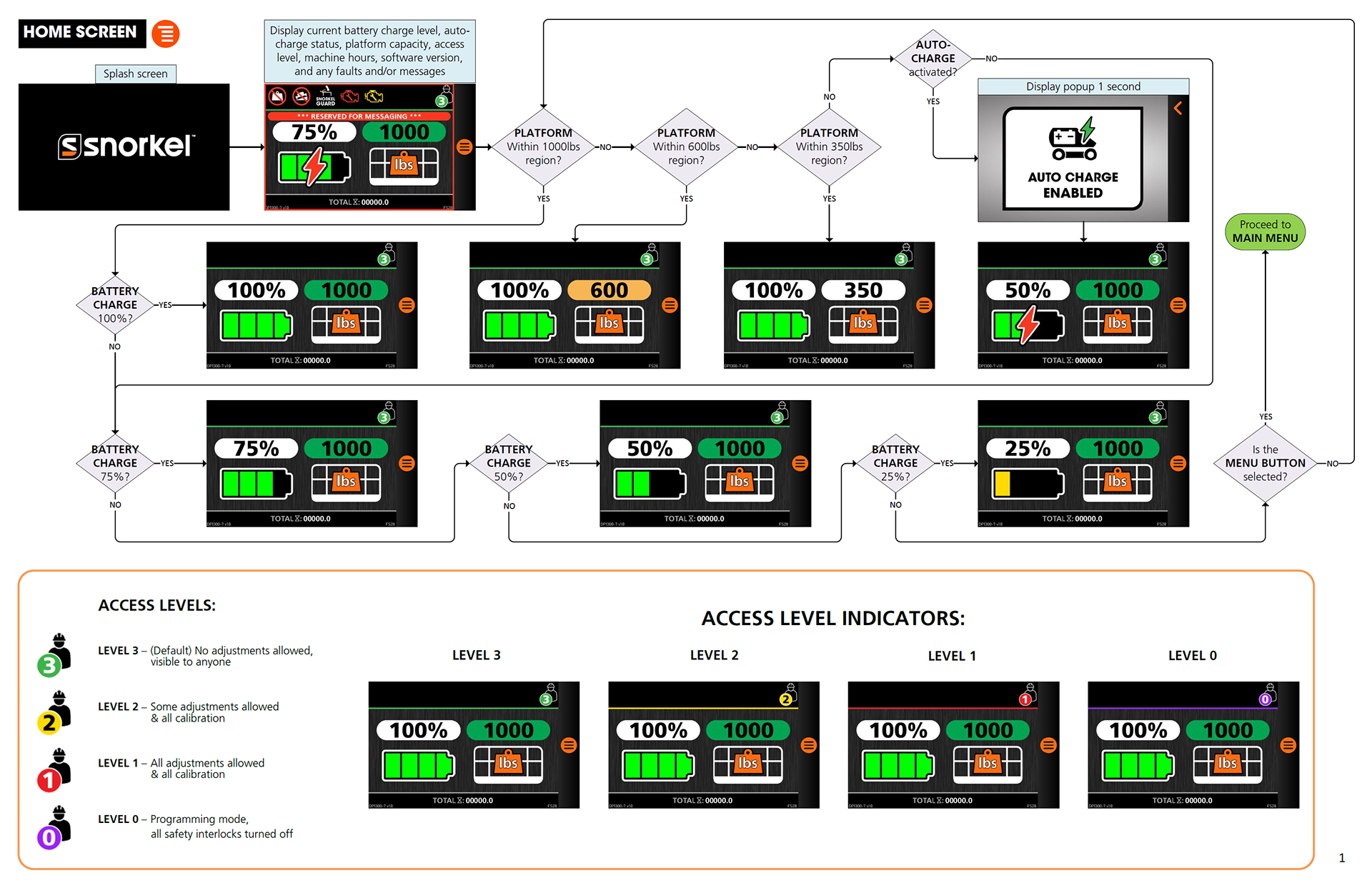

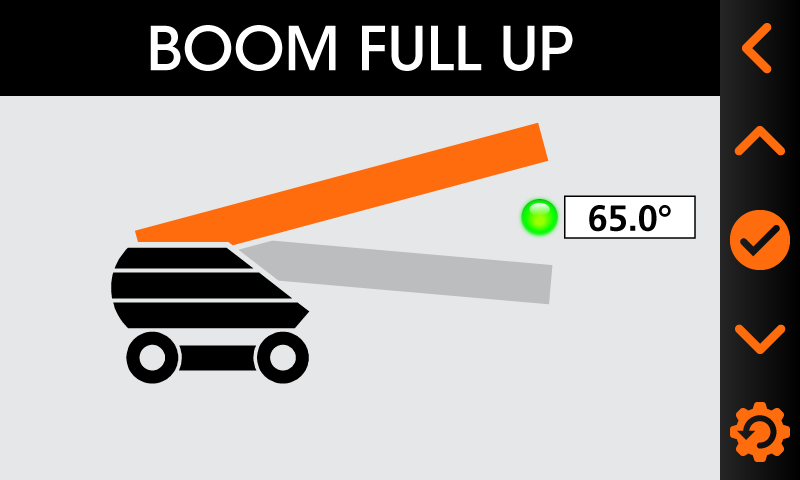

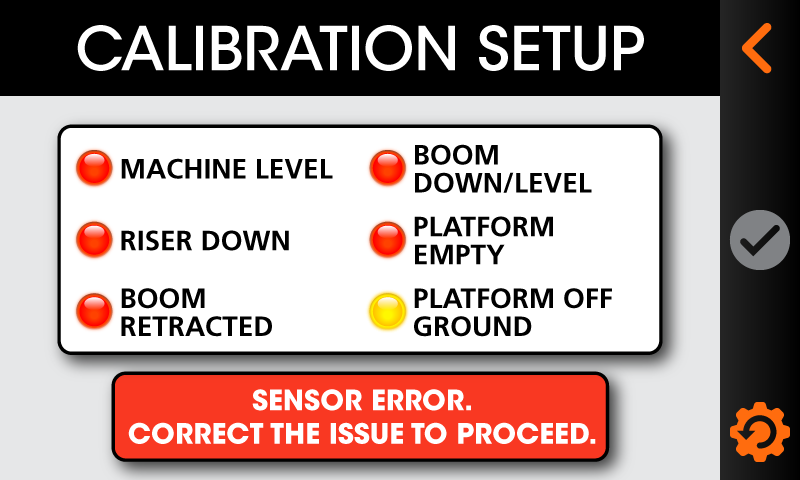

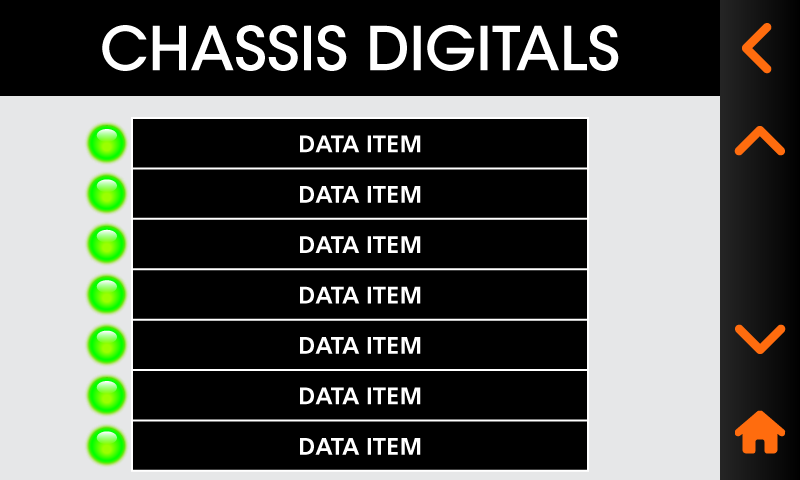

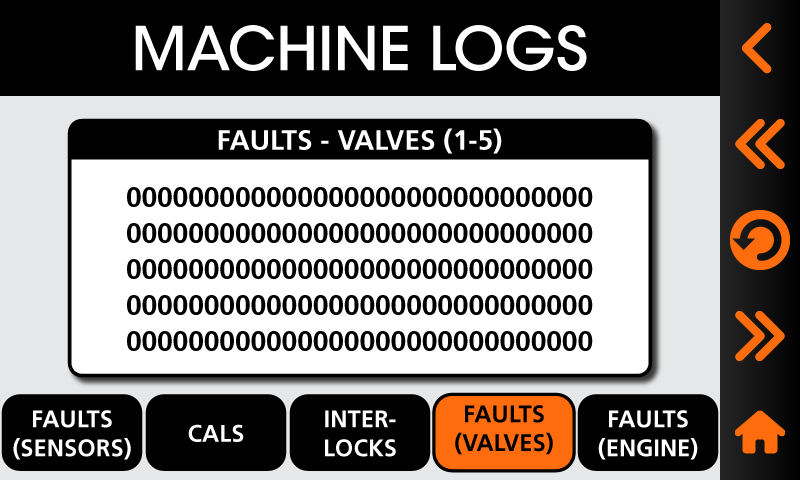

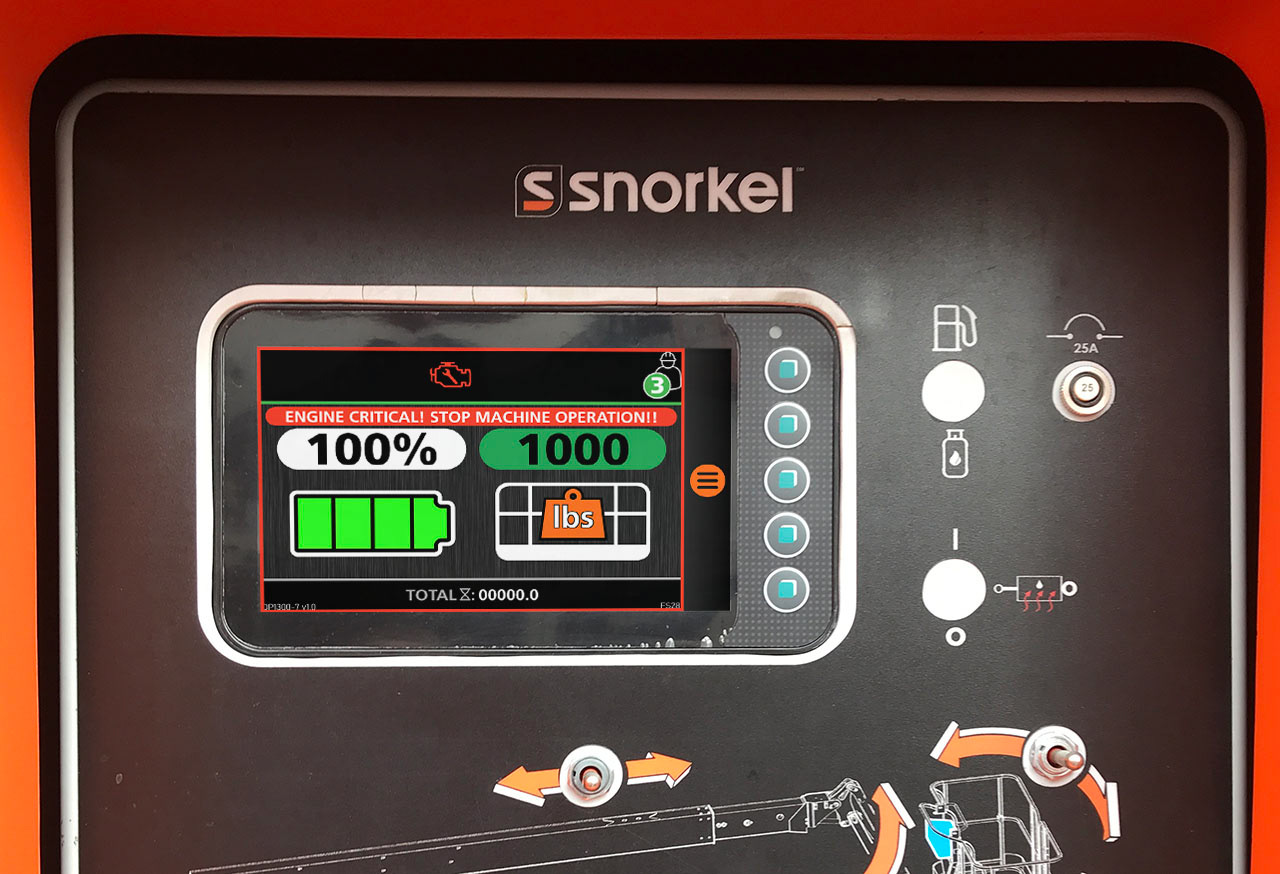

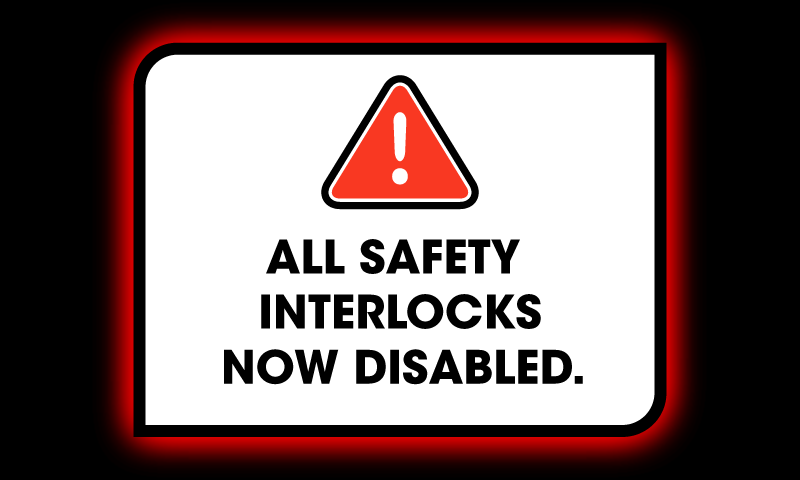

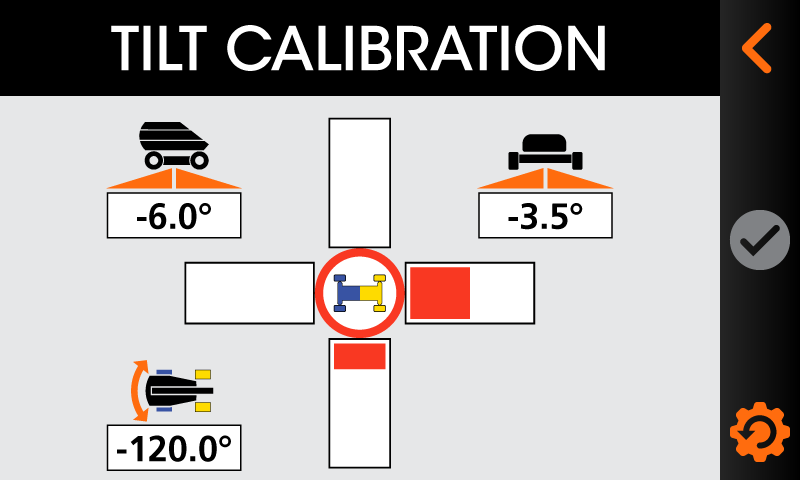

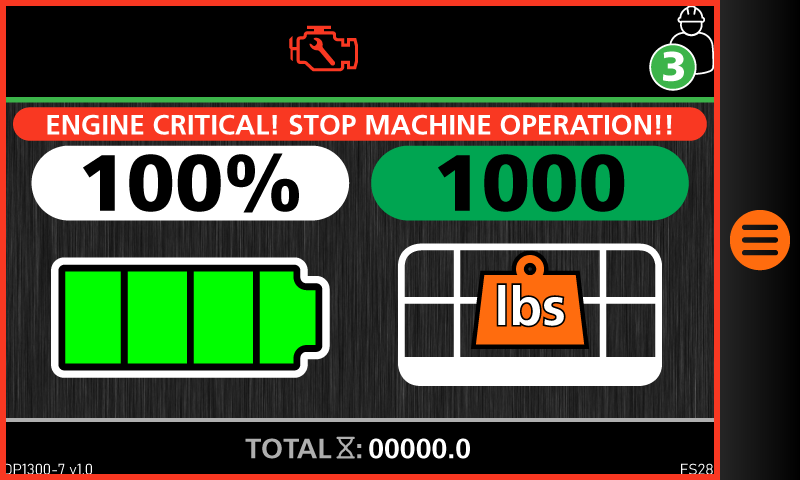

GRAPHICAL USER INTERFACE

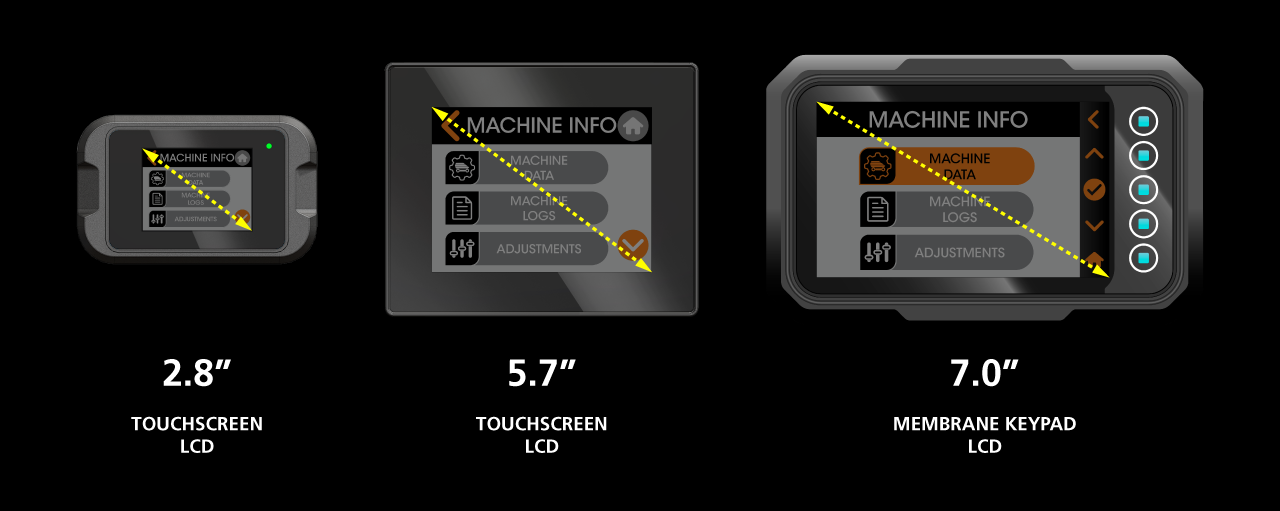

Three different interface sizes were created to ensure design was feasible with whatever display would be chosen for production.

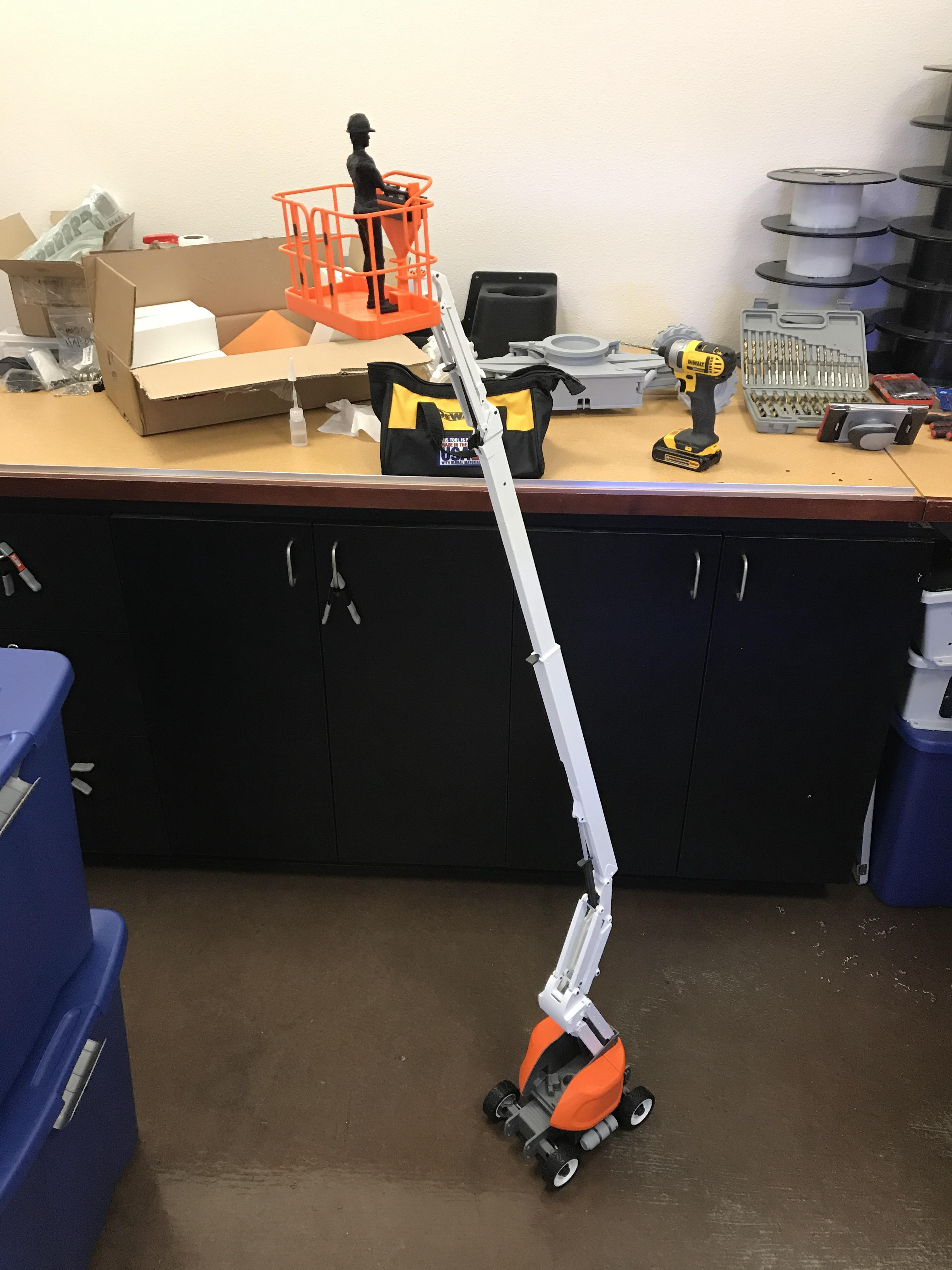

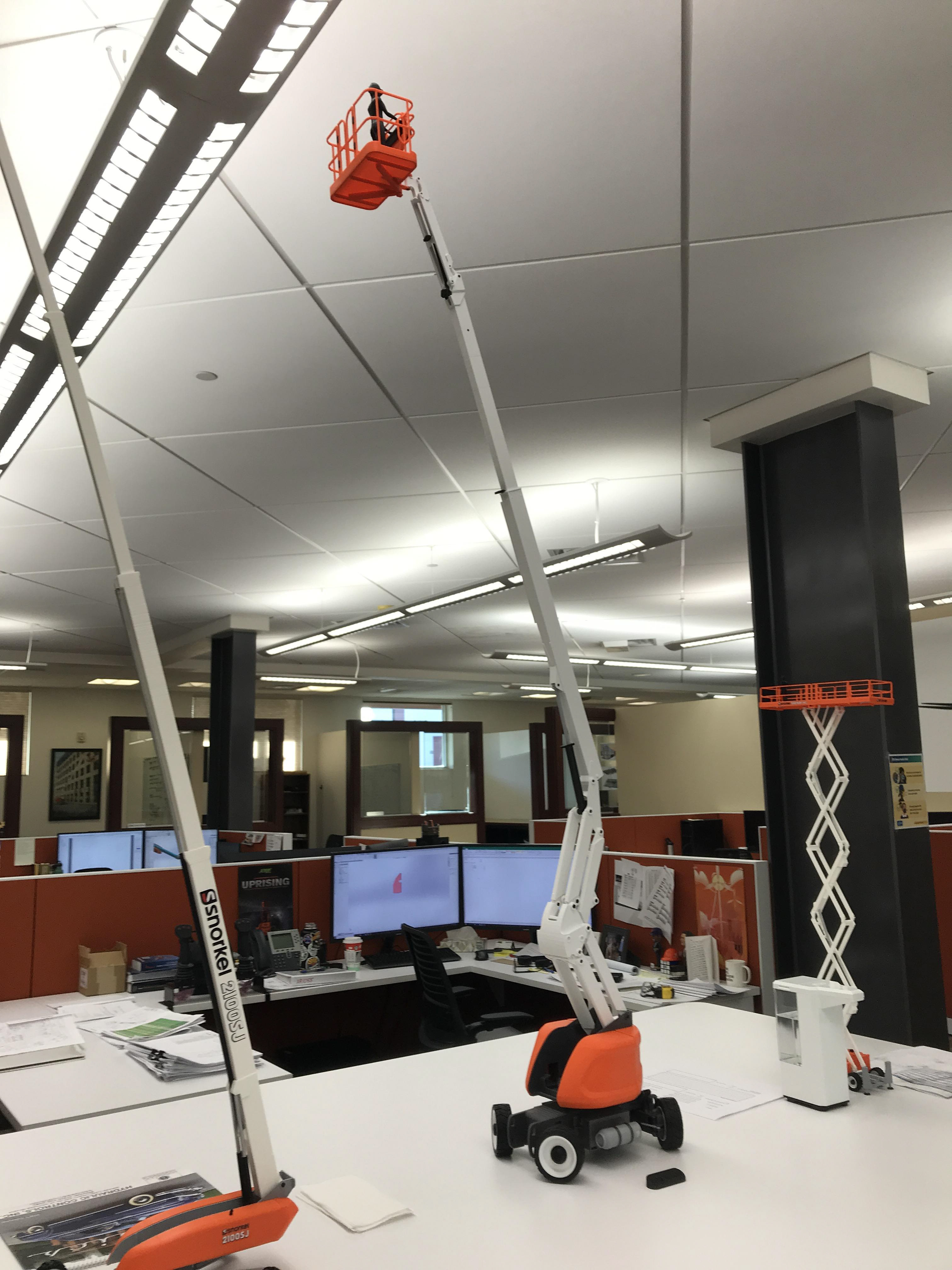

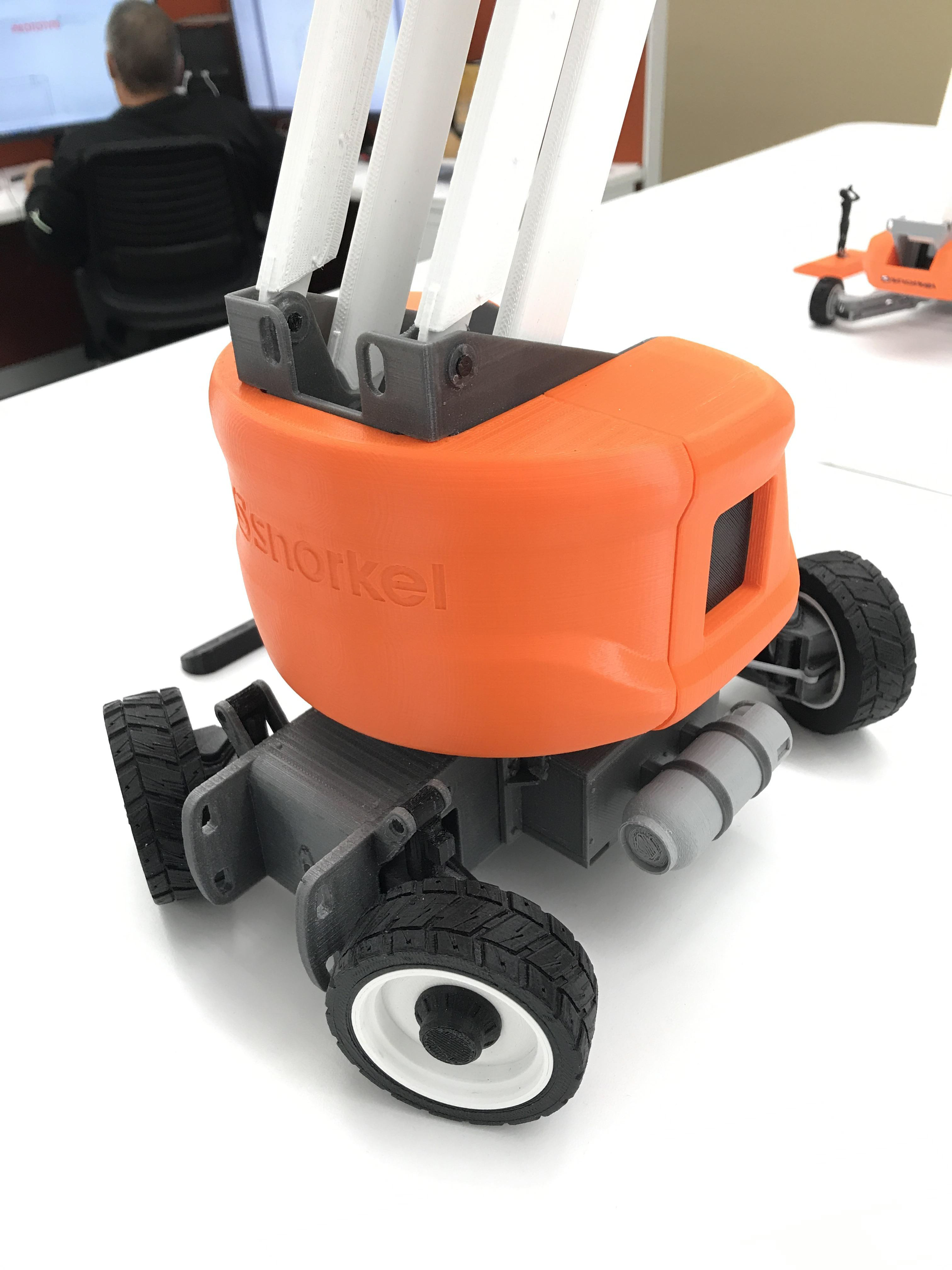

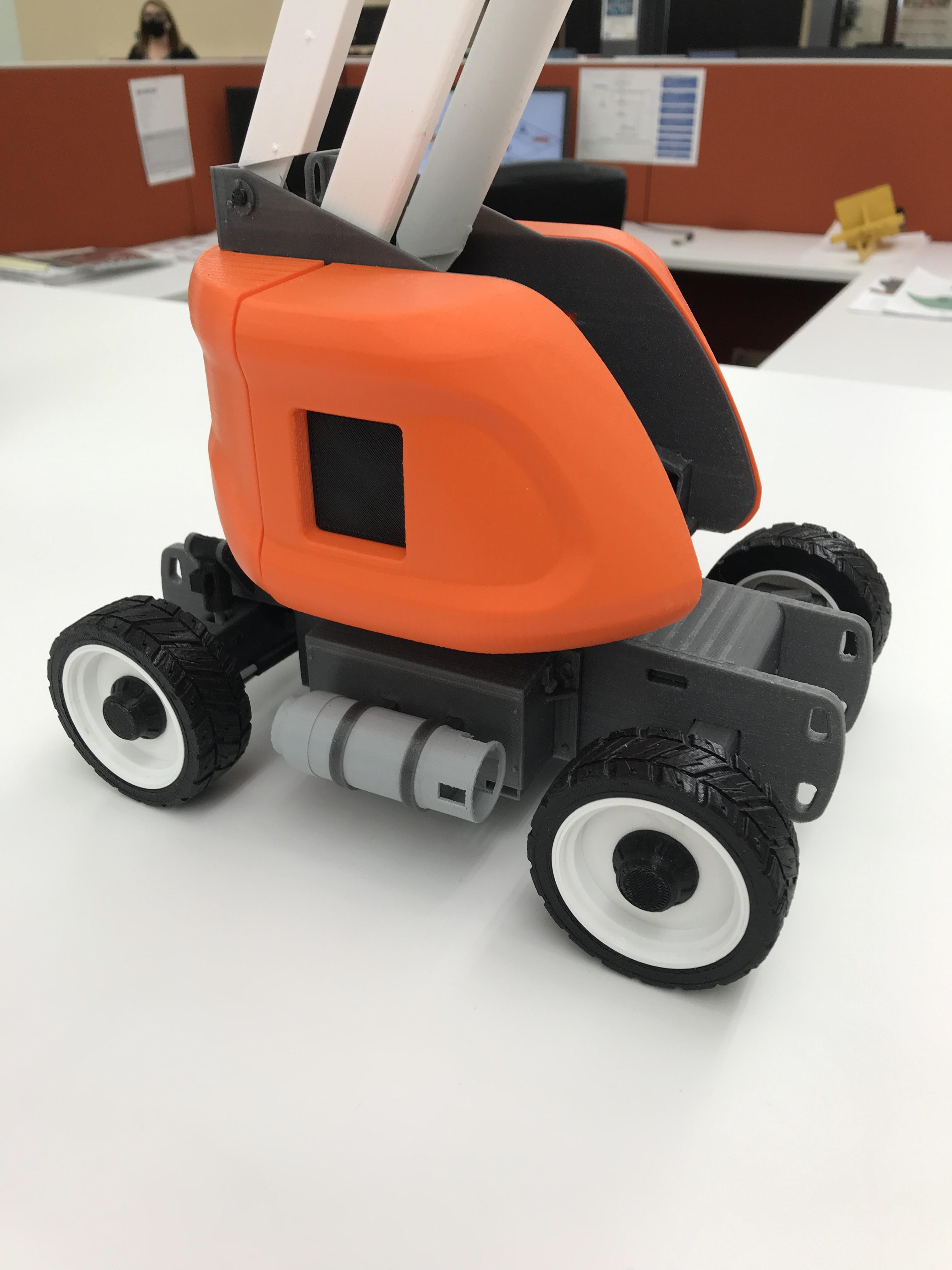

A 1:16 SCALE MODEL WAS 3D PRINTED FOR ENGINEERING DEPARTMENT TOURS

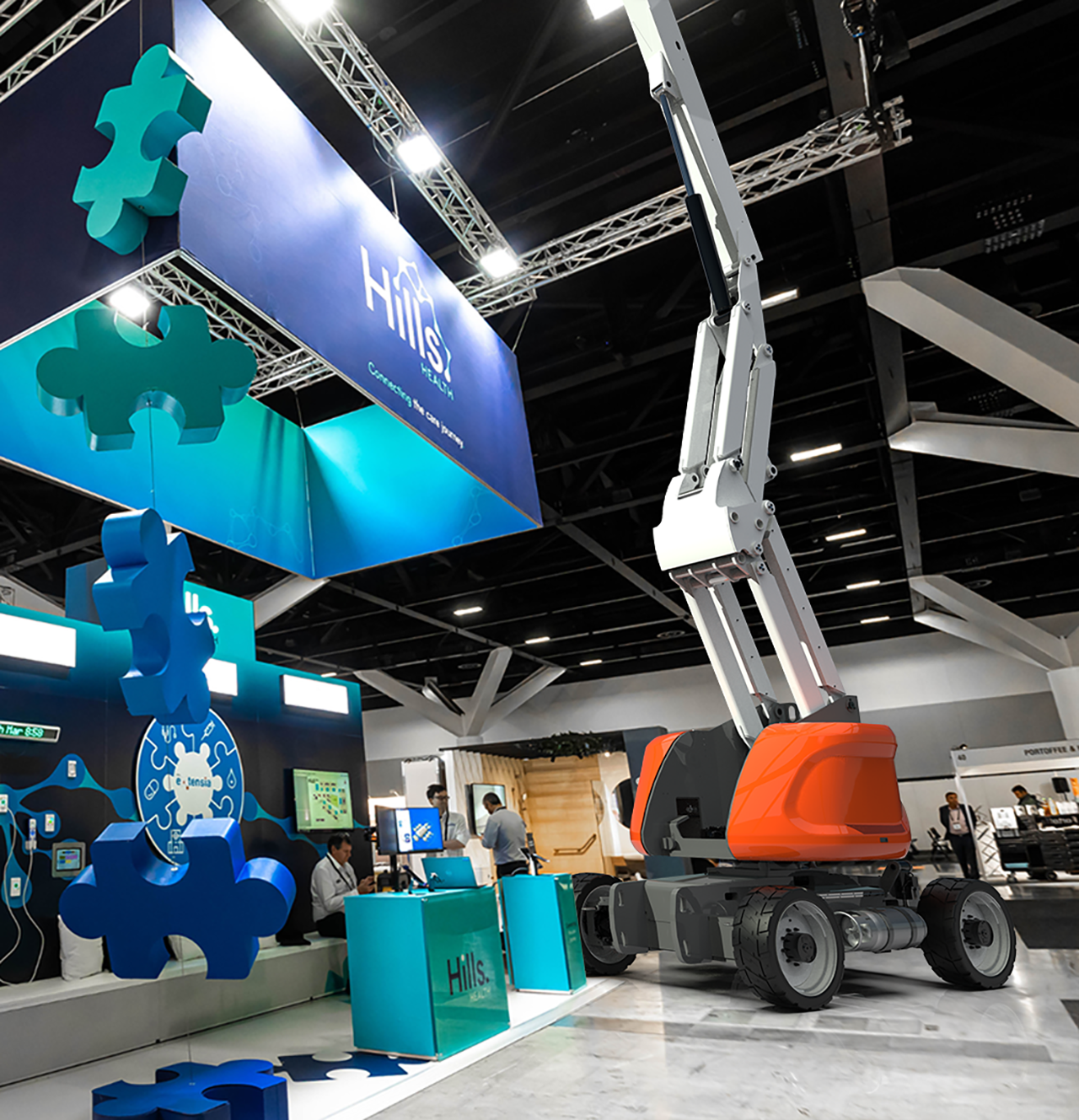

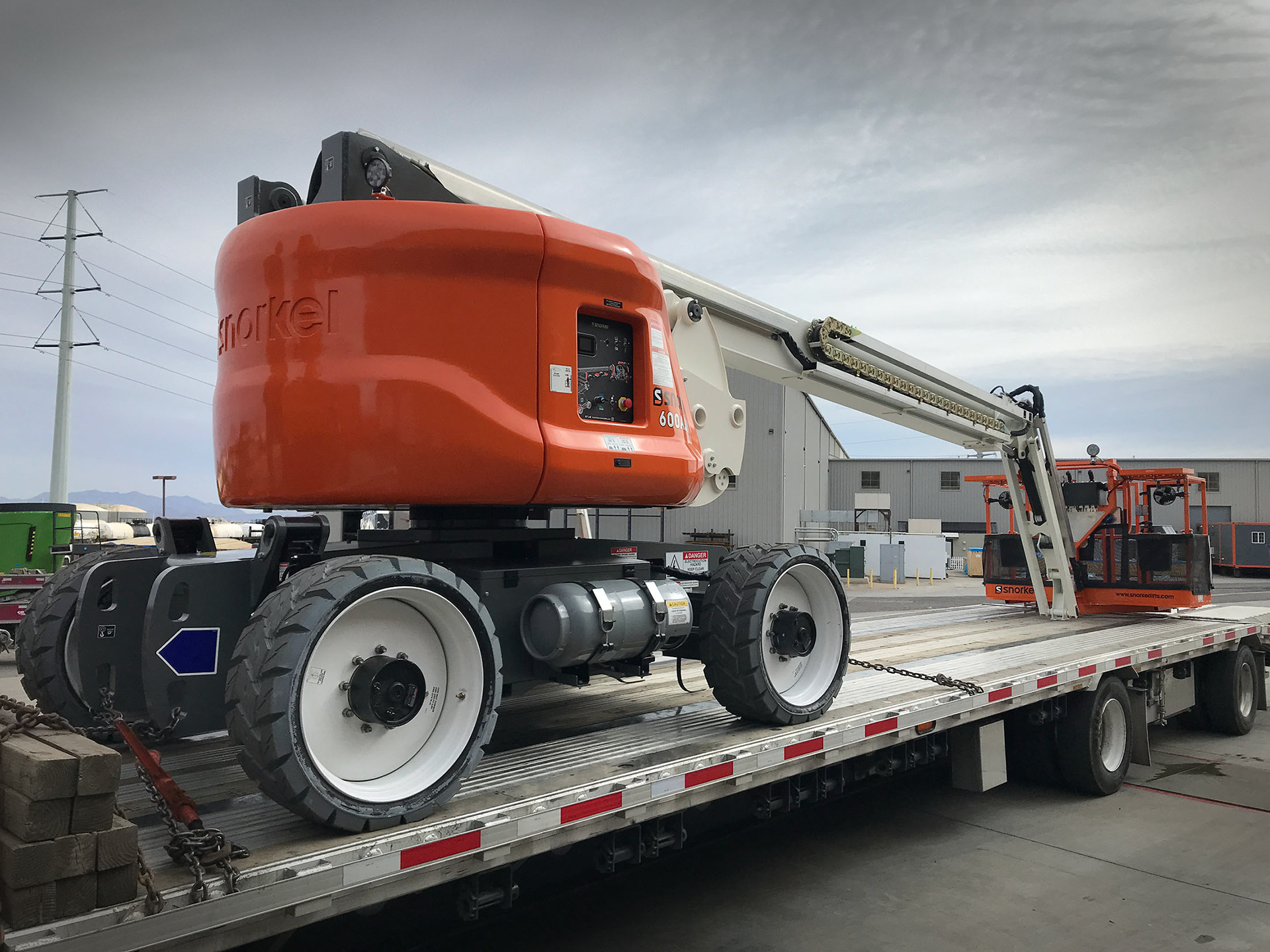

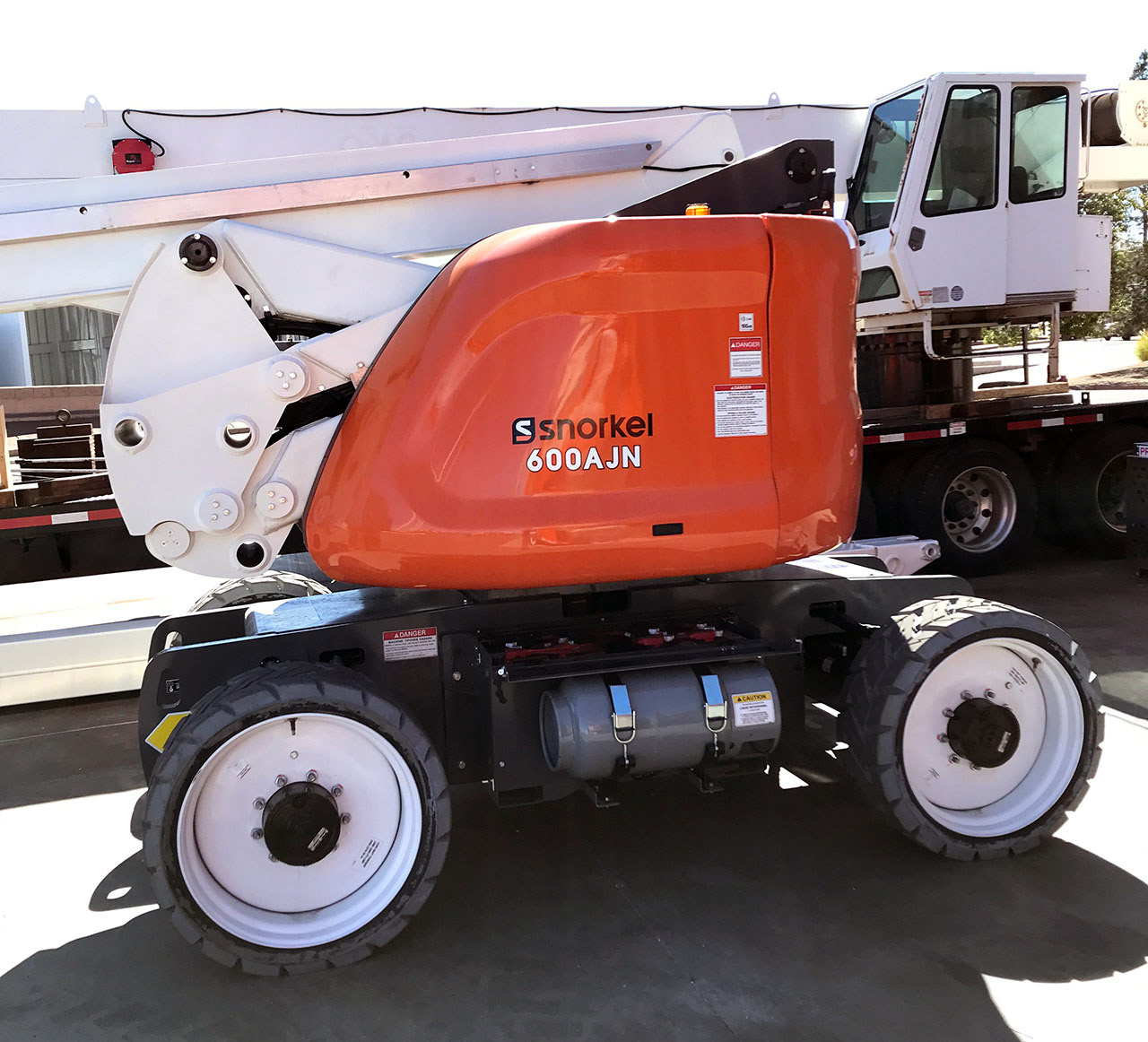

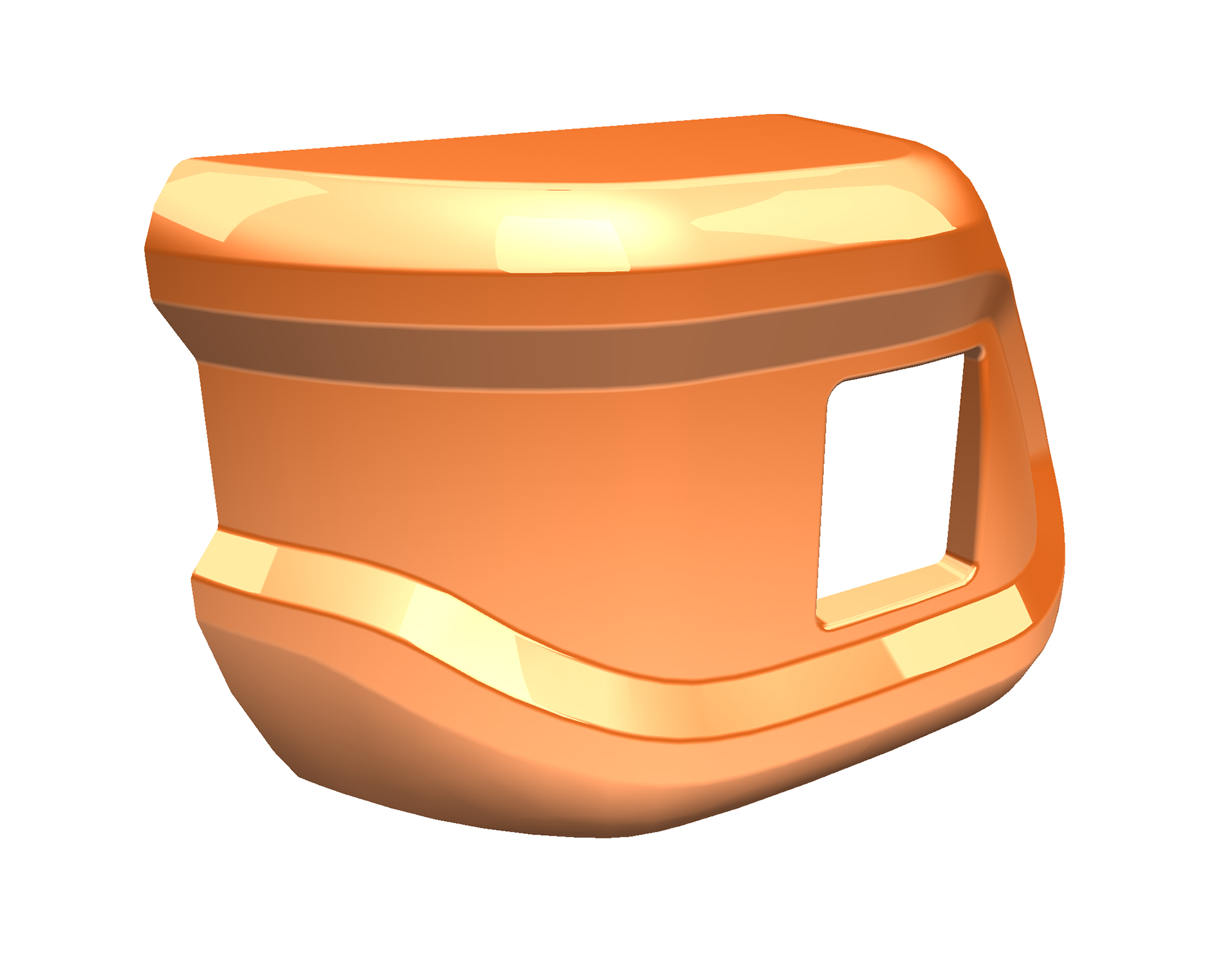

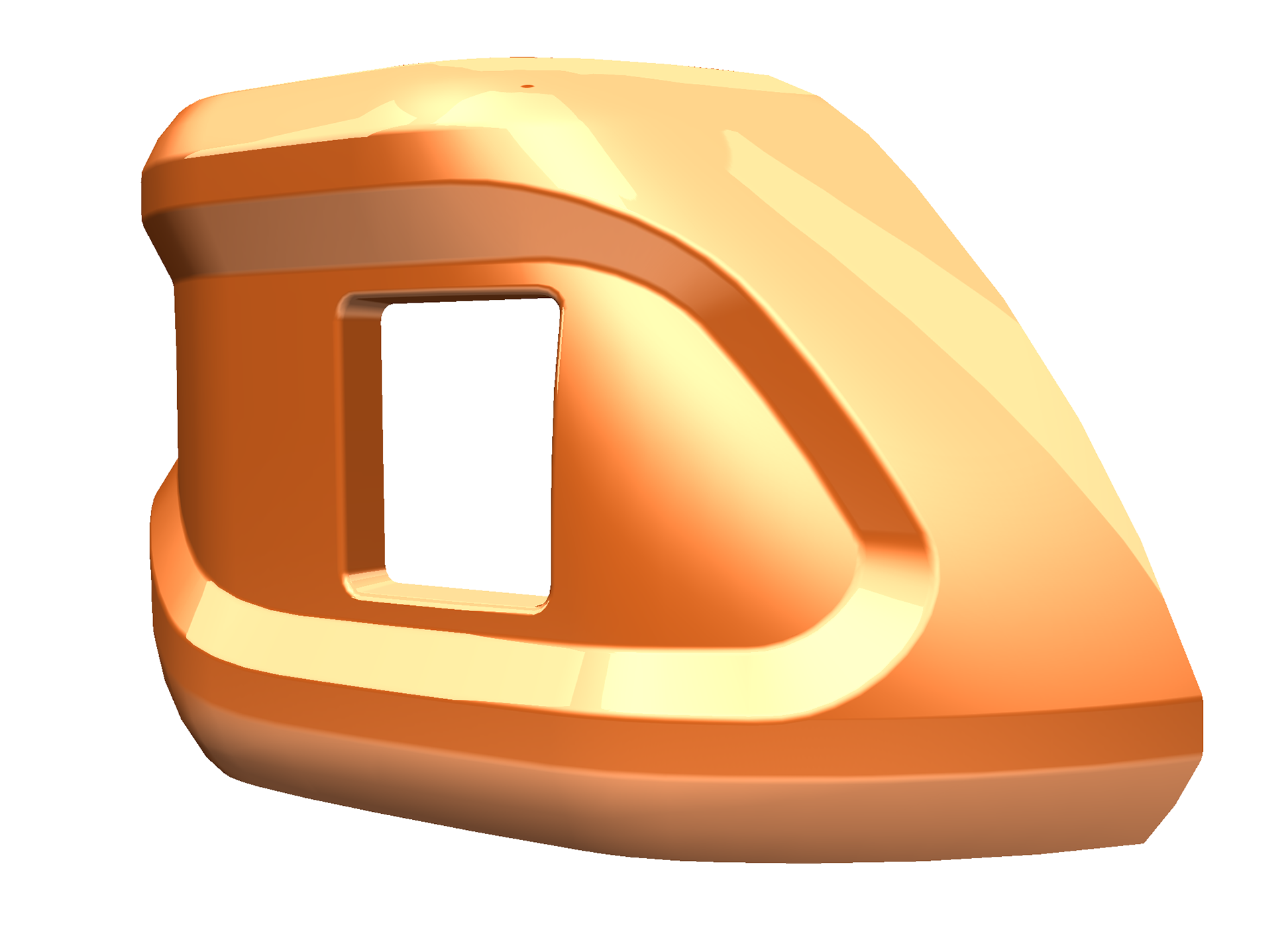

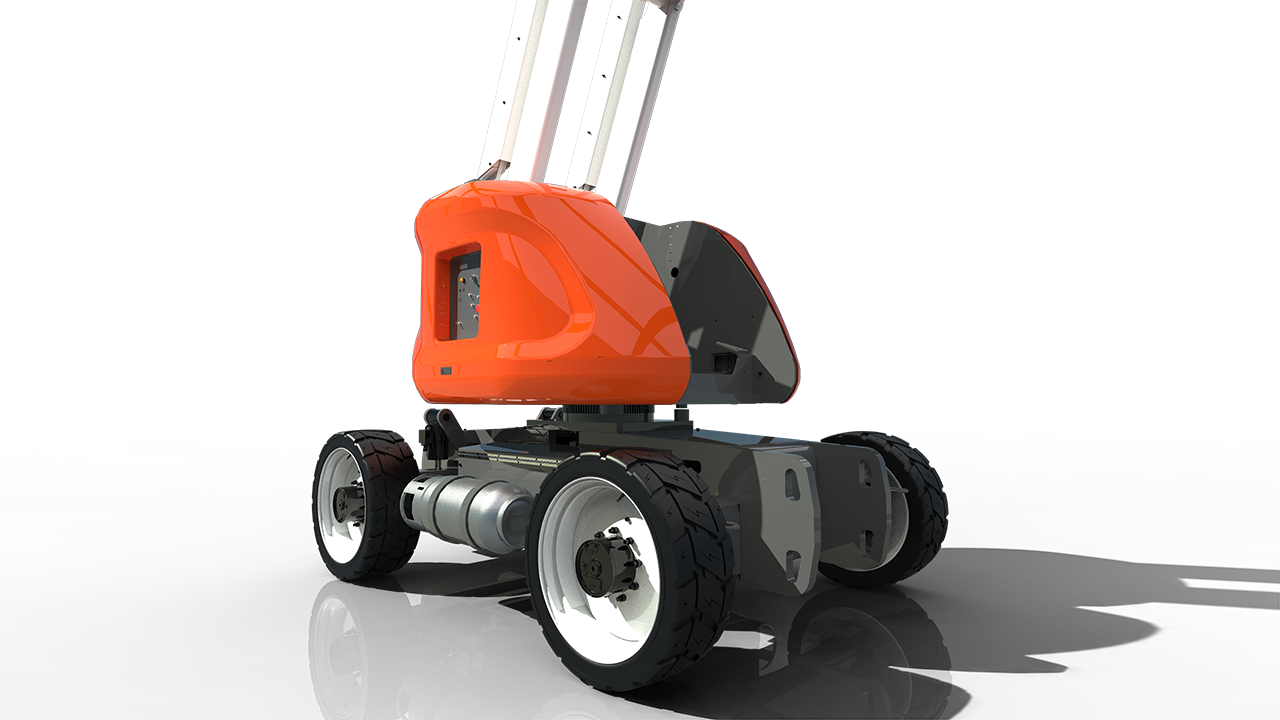

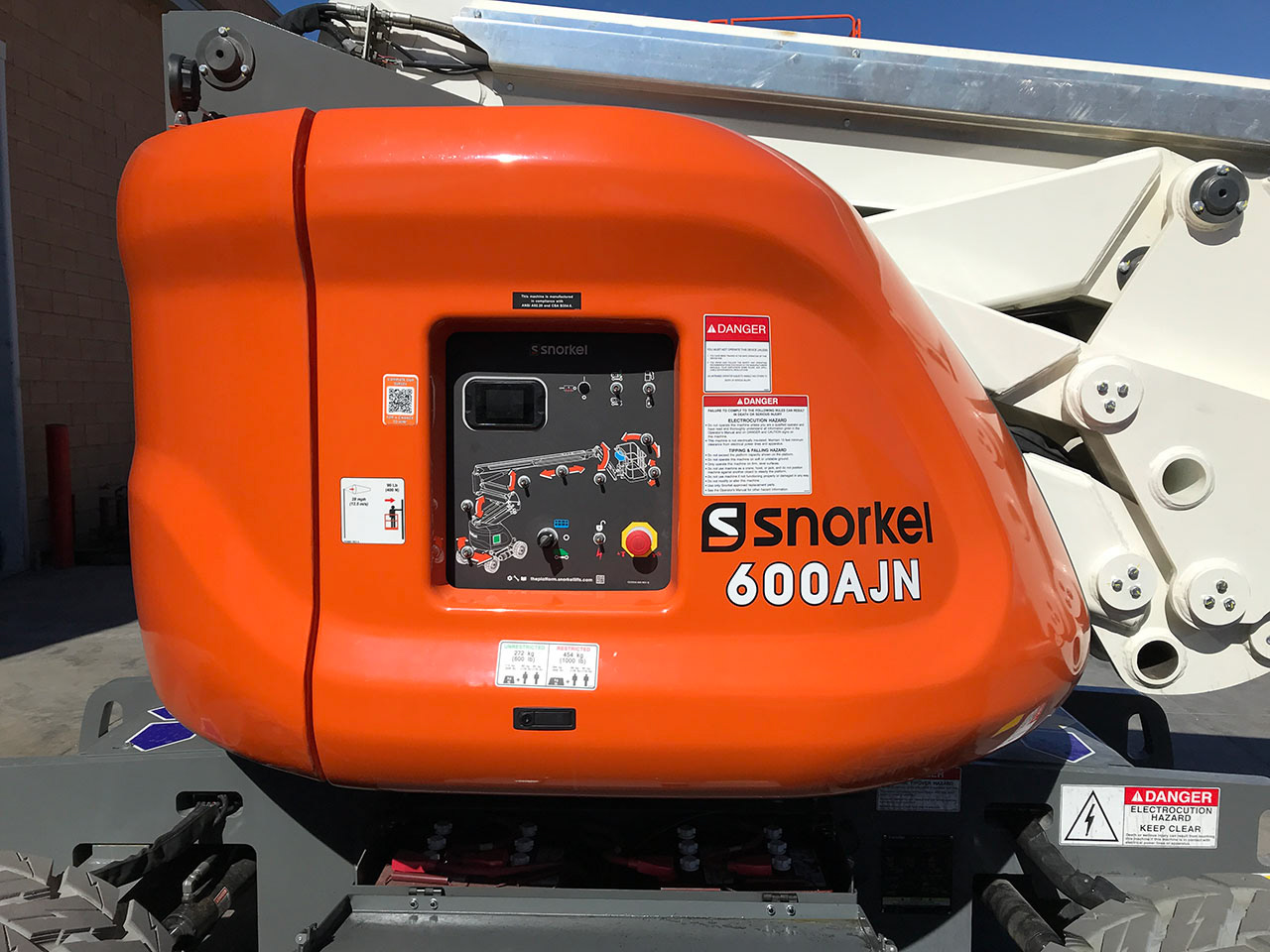

RENDERS / FINAL MACHINE
